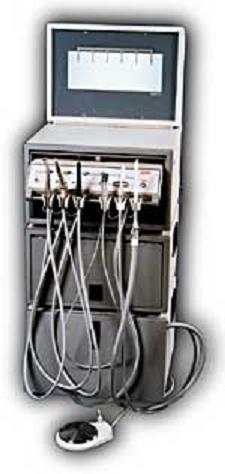

Top-of-the-line, portable, self-contained three-piece delivery system.  Easily transforms any room into a full-range dental operatory with a professional atmosphere.  For remote sites or in-office use. Everything needed to deliver quality dental care. Includes compressor, vacuum pump, waste purge pump, three handpiece connections, air/water syringe, clean water and waste reservoirs. The quality construction design features three high strength aluminum modules which lock together during use, and can be separated for easy transporting, convenient access to internal utilities. Aseptic design for easy maintenance.

FEATURES INCLUDE:

• Compact, modular construction.
• Patented, ultra quiet compressor.
• Separate powerful vacuum.
• Filtered fresh water supply.
• Efficient, automatic waste removal system.
• Multiple function control panel.
• Panoramic X-ray viewing box
• Handpiece flush system.
• Quick release mechanism for separating the modules.
• Large 1.2 liter waste receptacle.
• Ergonomic design.
• Complete assistant’s instrumentation.

• The lead time for this product is approximately 4 weeks.

DIMENSIONS/WEIGHT:

• Assembled: 16" D x 18.5" W x 38" H (40.5cm D x 47cm W x 96.5cm H) 138 lbs. (62.4 kg)
• Top module: 16" D x 18.5" H x 14" H (40.5cm D x 47cm W x 35.5cm H) 35 lbs. (15.8 kg)
• Middle module: 16" D x 18.5" H x 10.5" H (40.5cm D x 47cm W x 26.7cm H) 49 lbs. (22.2 kg)
• Bottom module: 16" D x 18.5" H x 13.5" H (40.5cm D x 47cm W x34.3cm H) 54 lbs. (24.5 kg)

ELECTRICAL:

• Power Supply : 110-120 V/60 Hz
• Current: 1440 W
• Circuit breaker protection
• Hospital grade wiring

COMPRESSOR SYSTEM:

• Duty cycle: 100% continuous duty
• Working Pressure: 95–115 psi (6.5 -8 bars)
• Flow rate: 1.8 cfm (51 l/m)
• Sound level: 40 dB
• Air reservoir: 2.5 gallons (9.5 liters)
• Coalescing filter/separator

VACUUM SYSTEM:

• Vacuum: 5"-15" Hg (12.7cm - 38cm Hg)
• Vacuum flow: 4.5 cfm (127.5 l/m)
• Waste receptacle: 1.2 liters
• Automatic overflow shutoff
• Aseptic filtered exhaust

WATER SYSTEM:

• Reservoir: 1 pint (500 ml)
• Pressurized system:30-45 psi (2.1-3.1 bars)
• Aseptic non-retracting water system
• Handpiece flush system
