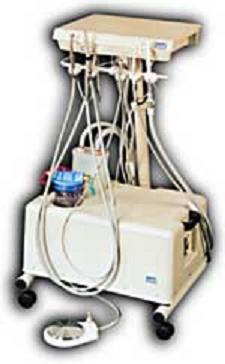

Dental Modular Treatment Unit ProCart I (220 V)

Item# 0162DNT

Two-piece, portable, self-contained delivery system suitable for use in-office, nursing homes, hospitals, or wherever on-site dentistry is required, the ProCart I combines a powerful air compressor and separate vacuum pump for actual “four-handed” capability. The ProCart I is a truly lightweight portable system easy to transport. It offers exceptional performance and can easily disassemble into small carrying cases. The air, water, and waste management are all contained inside the unit. Compatible with most common brands of handpieces, the ProCart I will also accommodate fiber optics.

FEATURES INCLUDE:

  • Oil-free 1/3 hp compressor.
  • Strong 1/3 hp vacuum motor.
  • Convenient two-piece design for portability.
  • Dual hose design for H.V.E and saliva ejector use.
  • Front mounted valve holders and controls for convenience.
  • Large waste container with automatic overflow shut-off.
  • 15 amp circuit protection.
  • Wet/dry foot control.
  • Automatic controls for one, two and three handpieces.
  • Accommodates many brands of handpieces and fiber optics.
  • Non-retracting handpiece water coolant system.
  • Automatic handpiece flush system.
  • Air/water syringe.
  • Adjustable high volume suction.
  • Adjustable saliva ejector.
  • Smooth-design chassis and handpiece holders.
  • Side mounted controls.
  • Easily assembled, adjustable height stand with lockable casters.
  • Powder-coated, scratch resistant finish.
  • Air-filter moisture separator.
  • Self-contained water supply with 16.9 oz. (500 ml) reservoir.
  • 2 quart (1.9 liters) waste container.
  • Repair/Tool kit.
  • Built-in carrying handles on Compressor Module.
  • Treatment Cart folds down into compact, easily transportable package.
  • Rugged carrying cases available.

  • The lead time for this product is approximately 4 weeks.

DIMENSIONS/WEIGHT:

Treatment Cart:

  • Base: 23" x 23" (58.4 cm x 58.4 cm)
  • Top: 15.5" x 14.5" (39.4 cm x 36.8 cm)
  • Height: 32" to 42" (adjustable) (81.3 cm to 106.7 cm)
  • Weight: 38 lbs (17.3 kg)

Compressor/Vacuum/Water Module:

  • Size: 11" D x 19" W x 10" H (27.9 cm x 48.3 cm x 25.4 cm)
  • Built-in carrying handles
  • Quickly attaches to Treatment Cart
  • Weight: 48 lbs (21.8 kg)

ELECTRICAL:

  • Power Supply:  220 vac, 50 Hz
  • Circuit Breaker: 15 amps
  • Hospital Grade Wiring: NEMA Type 5-15P Plug

COMPRESSOR/VACUUM/ WATER MODULE:

  • Compressor Motor: 1/3 hp, oil-free
  • Working Pressure: 56 psi
  • Flow Rate: 1.2 cfm @ 40 psi
  • Sound Level: 51 dB
  • Vacuum Motor: 1/3 hp, oil-free
  • Vacuum: 15" Hg
  • Vacuum Flow: 2.5 cfm
    Waste receptacle: 2 qt (1.9 liters)
  • Water Reservoir: 16.9 oz (500 ml)
  • Pressurized System: 40 psi
  • Non-retracting Water System
  • Handpiece flush system
