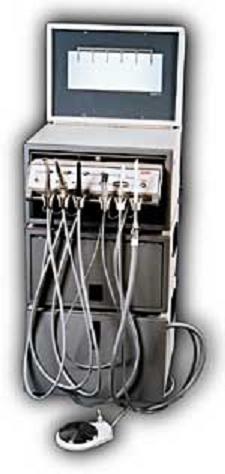

Dental Modular Operatory System Portable II (220 V)
Item #: 0102DNT
Top-of-the-line, portable, self-contained three-piece delivery system. Easily transforms any room into a full-range dental operatory with a professional atmosphere. For remote sites or in-office use. Everything needed to deliver quality dental care. Includes compressor, vacuum pump, waste purge pump, three handpiece connections, air/water syringe, clean water and waste reservoirs. The quality construction design features three high strength aluminum modules which lock together during use, and can be separated for easy transporting, convenient access to internal utilities. Aseptic design for easy maintenance.
FEATURES INCLUDE:
DIMENSIONS/WEIGHT:
- Assembled: 16" D x 18.5" W x 38" H (40.5cm D x 47cm W x 96.5cm H) 138 lbs. (62.4 kg)
- Top module: 16" D x 18.5" H x 14" H (40.5cm D x 47cm W x 35.5cm H) 35 lbs. (15.8 kg)
- Middle module: 16" D x 18.5" H x 10.5" H (40.5cm D x 47cm W x 26.7cm H) 49 lbs. (22.2 kg)
- Bottom module: 16" D x 18.5" H x 13.5" H (40.5cm D x 47cm W x34.3cm H) 54 lbs. (24.5 kg)
ELECTRICAL:
- Power Supply : 220-240 V/50 Hz
- Current: 1440 W
- Circuit breaker protection
- Hospital grade wiring
COMPRESSOR SYSTEM:
- Duty cycle: 100% continuous duty
- Working Pressure: 95–115 psi (6.5 -8 bars)
- Flow rate: 1.8 cfm (51 l/m)
- Sound level: 40 dB
- Air reservoir: 2.5 gallons (9.5 liters)
- Coalescing filter/separator
VACUUM SYSTEM:
- Vacuum: 5"-15" Hg (12.7cm - 38cm Hg)
- Vacuum flow: 4.5 cfm (127.5 l/m)
- Waste receptacle: 1.2 liters
- Automatic overflow shutoff
- Aseptic filtered exhaust
WATER SYSTEM:
- Reservoir: 1 pint (500 ml)
- Pressurized system:30-45 psi (2.1-3.1 bars)
- Aseptic non-retracting water system
- Handpiece flush system
|
