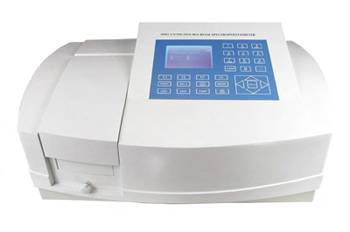

Double Beam UV Visible Spectrophometer

Item# 2084QSUCO

This user-friendly double beam spectrophotometer with 1.8 nm fixed bandwidth is specially designed for the rigorous, day-to-day demands of todays laboratory. It provides excellent performance for measurements in the range of 190nm to 1100nm

Features:

  • The two detectors are measuring sample and reference respectively and simultaneously for optimizing measurement accuracy
  • Dynamic range of 190-1100 nm
  • Digital display of photometric result
  • Easy operation
  • Auto zero function
  • Flexible sample compartment
  • Solid state detector for entire wavelength range
  • Built-in filters to ease operation
  • Suitable for pharmaceutical, biochemical and clinical lab applications as well as routine applications such as quantitative analyses, kinetics, spectrum scanning, multiple components and DNA/Protein
  • Optional PC download software and PC application software make this instrument versatile

Specifications:

  • Wavelength range: 190 - 1100 nm
  • Spectral bandwidth: 1.8 nm
  • Monochromator: double beam littrow type, grating 1200 lines/mm
  • Wavelength accuracy:  ±0.3 nm
  • Wavelength repeatability: ±0.2 nm
  • Wavelength calibration: automatic at start
  • Light source: tungsten halogen/deuterium lamp
  • Detector: solid silicon photodiode
  • Photometric readout: 1/4 VGA 320X240 pixels backlit LCD
  • Photometric range: 0 - 200%T -0.3 - 3.0A 0 - 9999C
  • Photometric accuracy: ±0.3%T
  • Zero drift: < 0.002A per hour after warm-up
  • Baseline flatness: ±0.004A
  • Stability: 0.002A/h at 500 nm
  • Stray light: < 0.15%T
  • Scanning speed: high, med., low. max. 1000 nm/min
  • Standard sample holder: 4-position cell holder
  • Analogue/digital output: digital, RS232 serial, centronics parallel
  • Dimensions: 620(L) x 400(W) x 280(H) mm
  • Weight: 53 lbs
  • Shipping dimensions: 720(L) x 525(W) x 280(H) mm
  • Shipping weight: 62 lbs
  • Operating temperature: room temperature: 22 ±2°C
  • Humidity range: less than 85%


Manufacturer warranty: 1 year

Voltage Preview
Advanced Application Software for PC's Advanced Application Software for PC's
(sold seperately)

This is an appplication software for PCs, for spectrophotometers.
